The main processer board comes mounted in a NEMA R/T J-box. Note grounding of the box as well

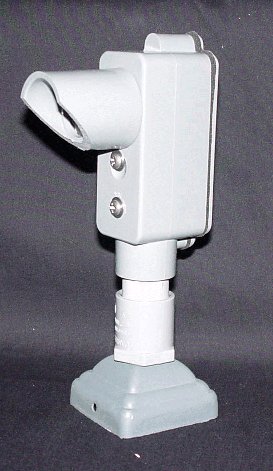

The photoeye assembly, should be mounted on a 2" X 2" structural post to accommodate the height requirement
The optional Transmitter Tester has a limited range of 6" and must be held up
If you would like to order the FIRE STROBE 2000, please call us at (858)
292-1561.
Click here to return to the
the circuit board is called out in the installation instructions.
INSTALLATION MANUAL
PHOTO EYE ASSEMBLY
of approximately 8' to 10'. The post should be strong enough to prevent accidental movement of the photoeye assembly after installation.
OPTIONAL TRANSMITTER TESTER
to the photoeye assembly during the test phase.
Order Information
One of our sales associates will be glad to help
you.
